Purpose #

This User Manual will guide you through the process of configuring the connection between VendSoft and USA Tech. This integration will activate the automatic telemetry data transmission to the VendSoft server.

Step 1. Map ePort device to machine in VendSoft #

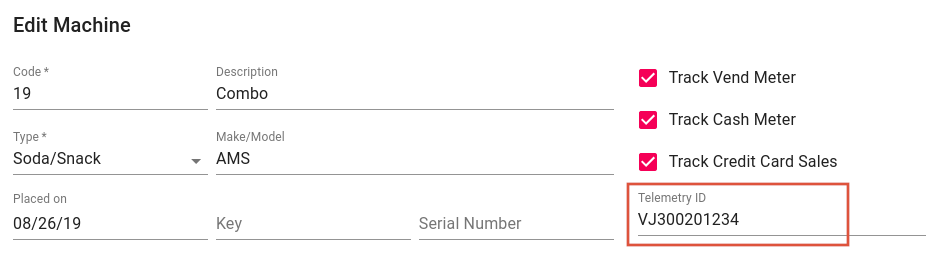

Once you have the Telemetry feature activated in VendSoft for your account, you will notice a new field on the View/Edit machine screen, called Telemetry ID. Go to business Machines > View/Edit Machine > Edit and enter in this field the value of the ePort device serial number. This will tell VendSoft which ePort device is attached to each machine.

Edit machine screen telemetry id field

Step 2. Define Column Maps #

Log in to USALive Customer Interface on https://usalive.usatech.com

Go to section Configuration > Column Maps:

USATech column mapping

This is the place where you define column mappings for each of your machines/devices.

USATech column mapping 2

Step 2.1. Find devices without mapping #

Click the button Search in the section Unmapped Device Serial. All devices that don’t have templates assigned will be listed here. Select the device you want to map.

USATech unmapped devices

Step 2.2. Select the suitable Column Map Template #

In Section Column Map Templates below, scroll and choose the template for your machine model. When you click on a template, you will see its content in Section Column Map Content to the right. Search for the template that fits your machine and select it.

USATech column map templates

If you are not sure which template is the right one for your machine, please contact the USA Tech support team.

Step 2.3. Apply the template to your device #

Click the Apply Template button in the Section Unmapped Device Serial above:

USATech column map apply template

Please check also the Column Map Instructions provided by USATech: https://usalive.usatech.com/download_file.i?file_name=USALive+Column+Map+Instructions.pdf

Step 3. Setup the connection details between USALive and VendSoft #

Now it’s time to setup the connection parameters between USALive and VendSoft. This is done again in the USALive system.

Go to section Reports > Report Register.

USATech report register

Click the button Add Transport in the section New Report Information.

USATech report add transport button

In the window that opens enter tha following data:

USATech report add transport screen

  • Transport Name: enter some name to identify that this transport will communicate with VendSoft, for example VendSoft HTTP.
  • Transport Type: select HTTP POST
  • URL: enter https://secure.vendsoft.com/usat/report
  • Username: enter the email that you use to log into VendSoft.

After you enter transport data, click the button Test Transport. You should see result “Success”:

USATech report add transport success

Finally, click the button Add Transport to create the transport.

Step 4. Create CSV Report #

After the transport details are configured, it is time to create your actual reports that will sent data to VendSoft. This is done again in USALive system. One of these reports is the “Single Transaction Data Export(CSV)” report.

Go to the screen Reports > Report Register. Click the button Create below the Reports Section:

USATech report register create button

In the section New Report Information enter the following data:

USATech report register new information

  • Report Name: Select from the list the item Single Transaction Data Export(CSV)
  • Available Transports: select the transport that you just created, VendSoft HTTP
  • Email Transport Errors To: enter our support email address, support@vendsoft.com

After you enter the data, click the button Save to save your report.

The report will appear in the Reports Section:

USATech report register list

Step 5. Create DEX file Report #

The other type of report that you have to configure is the DEX file report.

As in Step 4., on the screen Reports > Report Register click the button Create below the Reports Section.

In the section New Report Information enter the following data:

USATech report register DEX file

  • Report Name: Select from the list the item DEX File
  • Available Transports: select the transport that you just created, VendSoft HTTP
  • Email Transport Errors To: enter our support email address, support@vendsoft.com

After you enter the data, click the button Save to save your report.

The report will appear in the Reports Section:

USATech report register list

Step 6. Check the received transaction data #

When you start receiving data in VendSoft, run the report Telemetry > Transaction Log and check the data:

VendSoft transaction log report

Here you should be able to see the product and the selection. If the Product column is empty and the Selection column contains 4 digit MDB code instead of the selection, then there is still an issue with the mapping.

In this case, you should go back into the USALive portal and check the configuration on the screen Configuration > Column Maps.
